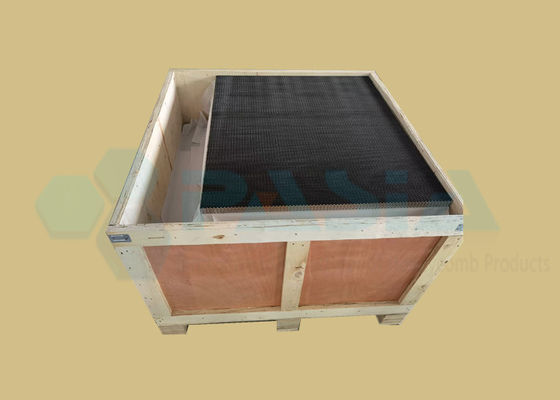

Shielded Honeycomb Ventilation Of Stainless Steel
Shielded Honeycomb Ventilation of Stainless Steel are developed by Pasia Industries with the panels of large sizes and environment resistant. Super large sizes can be manufactured. Good mechanical strength and environmental chracteristics can be acheived. Better cost/performance ratio is also a condition for suitable application.
Honeycomb vents are available with frames, pre-drilled with fasteners, or with flow-drilled thread holes. The standard material is stainless steel which can be given a electroplated.
If high shielding levels are required, the use of cross-cell honeycombs is recommended. The shielding performance will improve as airflow is decreased, but not eliminated.
For military applications we make a heavy hot-dip galvanized mild-steel version. Please contact us for more information.
| Specification | Dimension | Venilated Area | Installated Size | Installation Point Numbers | ||||
| WxL | AxB | C | D | E | F | Wside | Lside | |
| ANFPSNI76X7632W | 76X76 | 51X51 | 32 | 32 | 1 | 1 | ||
| ANFPSNI101X10132W | 101X101 | 76X76 | 44 | 44 | 1 | 1 | ||
| ANFPSNI101X20332W | 101X203 | 76X177 | 44 | 19 | 76 | 1 | 3 | |
| ANFPSNI127X12732W | 127X127 | 102X102 | 57 | 19 | 76 | 1 | 2 | |
| ANFPSNI127X15232W | 127X152 | 102X127 | 25 | 25 | 89 | 64 | 2 | 2 |
| ANFPSNI127X17732W | 127X177 | 102X152 | 25 | 38 | 88 | 64 | 2 | 2 |
| ANFPSNI152X15232W | 152X152 | 127X127 | 25 | 25 | 89 | 89 | 2 | 2 |
| ANFPSNI152X17732W | 152X177 | 127X152 | 25 | 38 | 88 | 89 | 2 | 2 |
| ANFPSNI177X17732W | 177X177 | 152X152 | 38 | 38 | 88 | 88 | 2 | 2 |
| ANFPSNI203X20332W | 203X203 | 177X177 | 51 | 19 | 76 | 88 | 2 | 3 |
| ANFPSNI203X25432W | 203X254 | 177X229 | 51 | 32 | 88.5 | 88 | 2 | 3 |
| ANFPSNI305X30532W | 305X305 | 279X279 | 32 | 32 | 76 | 76 | 4 | 4 |
| ANFPSNI305X61032W | 305X610 | 279X584 | 32 | 33 | 88.5 | 76 | 4 | 7 |
| ANFPSNI483X48332W | 483X483 | 457X457 | 45 | 45 | 76 | 76 | 6 | 6 |
Advantages:
1. Lightweight
2. High shielding performance
3. Low air-flow resistance
4. Reduction of turbulence
Applications:
Welded Stainless Steel honeycomb core
EMI/RF Shielding
Operation tables for water jets
Structural core material for sandwich structure for aircraft, thrust reversers, exhaust nozzles,
Aircraft Engine Sealing
Turbine Sealing for power generation
Air, water and gas flow straighteners and filters
