Place of Origin: | China |
---|---|
Brand Name: | MICH |
Certification: | ISO9001 |
Model Number: | EHTTSORP |
Minimum Order Quantity: | 1 meter |
Price: | USD0.5-USD5 per meter |
Packaging Details: | plywood crates |
Delivery Time: | in one month |
Supply Ability: | 10 million meters per year |
Dimensions: | 0.2"x0.3" (5mm X 8mm) 12 AWG | Dielectric Strength: | Over 2000 Volts |
---|---|---|---|
Property: | Explosion-proof, Anti-corrosion, Safe | Usage: | Oil Refinery And Petrochemical |
Function: | Heat Trace And Heating | Wattage: | 39Watt/meter |
Max. Exposure Temp. (°F) Power Off: | 260 | Voltages: | Up To 480 |
High Light: | 480V Electric Heat Tracing,12 AWG Electric Heat Tracing,39W/M self limiting heat trace |
Electric Heat Tracing Technical Solution for Oil Refinery and Petrochemical Plant is the technical solution package to be applied on the refinery and petrochemical plant for heat trace the instrumentations and equipments. In general, electric heating designer and manufacturers suggest that users should provide detailed working conditions and requirement when selecting the type. Once the suitable heat trace is selected, designed, manufactured and installed, the whole electric heating scheme can ensure the smooth operation of the relevant refining facilities under various working conditions.
Electric heating of air separation instrument in phase I project of 40 million tons/year refining and chemical integrated project of zhejiang petrochemical co., LTD adopts self-limiting temperature electric tracing belt and MI armored heating cable.
Self-limiting temperature electric tracing belt is a new generation of strip constant temperature electric heating products, automatically limit the heating temperature, and automatically adjust the output power with the temperature of the heat tracing body; It can be arbitrarily cut or lengthened within a certain length range.Allow multiple overlapping without the risk of high temperature overheating and burning; Easy maintenance and energy saving.

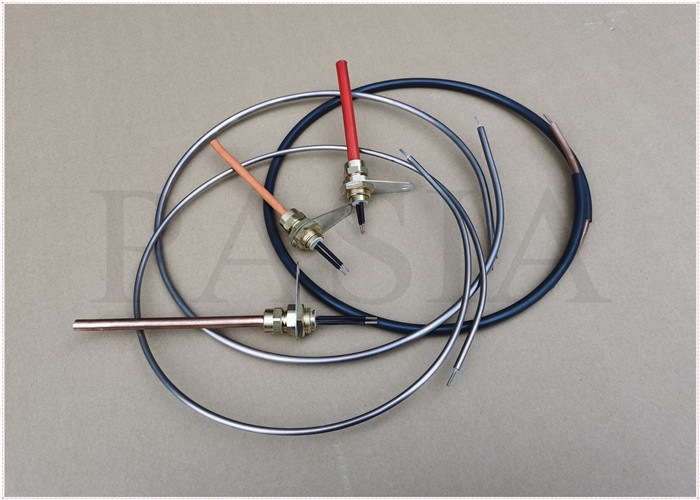

MI heating cable is made of single or multiple alloy electric heating wire as heating source, high purity, high temperature, electric melting crystallization magnesium oxide as thermal insulation, seamless continuous stainless steel or copper tubes as sheath, using special production process. Used in highly corrosive places, PE or low smoke halogen-free coat should be added to the original cable. Its advantages are excellent mechanical strength and corrosion resistance.
Table 2 Heating Cable Specification (600V Single Conductor)
Cable Code | Diameter | HDPE Diameter | Standard resistance value at +20℃ | Maximum Production Length | Unit weight |
mm | mm | Ω/m | m | kg/km | |
16C1.7 | 8.2 | 10 | 0.0017 | 350 | 366.54 |
16C2.2 | 7.6 | 9.4 | 0.0022 | 380 | 307.77 |
16C2.9 | 7.0 | 8.8 | 0.0029 | 400 | 264.45 |
16C4 | 5.9 | 7.7 | 0.004 | 600 | 190.88 |
16C7 | 5.3 | 7.1 | 0.007 | 600 | 154.08 |
16C11 | 4.9 | 6.7 | 0.011 | 600 | 132.25 |
16C13 | 4.6 | 6.4 | 0.013 | 600 (300)☆ | 125.7 |
16C17 | 4.6 | 6.4 | 0.017 | 600 (300)☆ | 117.16 |
16C21 | 4.6 | 6.4 | 0.021 | 600 (300)☆ | 111.9 |
16C25 | 3.7 | 5.5 | 0.025 | 600 (480)☆ | 68.83 |
16C33 | 3.7 | 5.5 | 0.033 | 600 (480)☆ | 63.76 |
16C40 | 3.4 | 5.2 | 0.04 | 600 (560)☆ | 58.87 |
16C63 | 3.2 | 5 | 0.063 | 600 | 51.47 |
16K80 | 6.8 | 8.6 | 0.08 | 370 (140)☆ | 254.18 |
16K100 | 5.2 | 7 | 0.1 | 450 (240)☆ | 162.11 |
16K140 | 4.9 | 6.7 | 0.14 | 600 (270)☆ | 122.55 |
16K197 | 4.45 | 6.25 | 0.197 | 600 (330)☆ | 111.32 |
16K220 | 4.5 | 6.3 | 0.22 | 600 (330)☆ | 102.89 |
16K315 | 4.3 | 6.1 | 0.315 | 600 (350)☆ | 91.44 |
16K345 | 4.2 | 6.0 | 0.345 | 600 (370)☆ | 85.9 |
16K450 | 4.0 | 5.8 | 0.45 | 600 (400)☆ | 80.73 |
16K630 | 4.0 | 5.8 | 0.63 | 600 (400)☆ | 77.26 |
16K800 | 3.5 | 5.3 | 0.8 | 600 (530)☆ | 61.48 |
16K1250 | 2.8 | 4.6 | 1.25 | 600 | 40.83 |
16K2000 | 2.8 | 4.6 | 2.0 | 600 | 38.96 |
Table 3 Heating Cable Specification (600V Double Conductors)
Cable Code | Diameter | Nominal resistance at +20℃ | Maximum manufacturing length | Unit weight |
mm | Ω/m | m | kg/km | |
26C3.4 | 12.9 | 0.0034 | 150 | 783.76 |
26C4.4 | 12.2 | 0.0044 | 160 | 701.56 |
26C5.8 | 11.3 | 0.0058 | 170 | 606.16 |
26C8.6 | 9.90 | 0.0086 | 180 | 451.43 |
26C11.4 | 9.30 | 0.0114 | 200 | 400.05 |
26C13.8 | 9.00 | 0.0138 | 210 | 375.20 |
26C17.2 | 8.60 | 0.0172 | 220 | 344.90 |
26C23 | 8.00 | 0.023 | 250 | 303.25 |
26C34.4 | 7.50 | 0.0344 | 280 | 269.20 |
26C49.2 | 7.10 | 0.0492 | 300 | 243.84 |
26K240 | 9.90 | 0.24 | 180 | 451.43 |
26K320 | 9.30 | 0.32 | 200 | 400.05 |
26K384 | 9.00 | 0.384 | 210 | 375.20 |
26K480 | 8.60 | 0.48 | 220 | 344.90 |
26K640 | 8.00 | 0.64 | 250 | 303.25 |
26K960 | 7.50 | 0.96 | 280 | 269.20 |
Table 4 Heating Cable Specification (300V Double Cores)
Cable Code | Diameter | Nominal resistance at +20℃ | Maximum manufacturing length | Unit weight |
mm | Ω/m | m | kg/km | |
23C3.4 | 12.0 | 0.0034 | 200 | 708.10 |
23C4.4 | 11.3 | 0.0044 | 220 | 629.07 |
23C5.8 | 10.4 | 0.0058 | 240 | 537.73 |
23C8.6 | 9.00 | 0.0086 | 260 | 392.56 |
23C11.4 | 8.40 | 0.0114 | 280 | 343.89 |
23C13.8 | 8.00 | 0.0138 | 300 | 314.57 |
23C17.2 | 7.60 | 0.0172 | 320 | 286.27 |
23C23 | 7.10 | 0.023 | 340 | 252.98 |
23C34.4 | 6.60 | 0.0344 | 360 | 221.19 |
23C49.2 | 6.20 | 0.0492 | 380 | 197.64 |
23K160 | 10.4 | 0.16 | 220 | 508.37 |
23K240 | 9.00 | 0.24 | 240 | 392.56 |
23K320 | 8.40 | 0.32 | 265 | 343.89 |
23K384 | 8.00 | 0.384 | 280 | 314.57 |
23K480 | 7.70 | 0.48 | 300 | 291.91 |
23K640 | 7.10 | 0.64 | 320 | 252.98 |
23K960 | 6.50 | 0.96 | 350 | 216.11 |
Note: the resistance value of 2-core cable in the above table is the measured value after the ends are twisted (i.e., single-core resistance X2);
For the use of 660V voltage occasions, please contact our company professionals;
Mark of (300)☆ is a recommended production length by MICH
Selection Parameters:
Constant Wattage Heating Cable | High Temperature Heating cable | Polyamide/Fiberglass Heating Cable | Harsh Environment Heating Cable | General Purpose Heating Cable |
Available Voltages | 120, 208, 240, 277 & 480 VAC | 120, 208, 240, 277 & 480 VAC | 120, 208, 240, 277 & 480 VAC | 120, 208, 240, 277 & 480 VAC |
Available Wattages
|
4, 8 & 12 watts/ft (13, 26 & 39 watts/m) | 4, 8 & 12 watts/ft (13, 26 & 39 watts/m) | 4, 8 & 12 watts/ft (13, 26 & 39 watts/m) | 3, 5, 8 & 12 watts/ft (10, 16, 26 & 39 watts/m) |
Maximum Exposure Temperature |
500°F (260°C)
|
500°F (260°C)
|
500°F (260°C)
|
400°F (204°C)
|
Nominal Dimensions
|
0.2"x0.3" (5mm x 8mm) 12 AWG
|
0.2"x0.3" (5mm x 8mm) 12 AWG
|
0.2"x0.3" (5mm x 8mm) 12 AWG
|
0.2"x0.3" (5mm x 8mm) 12 AWG |
Resistance to Moisture | Good | Good |
Excellent
|
Excellent
|
Resistance to Chemicals | Good | Good |
Excellent
|
Excellent
|
Resistance to Flame | Excellent | Outstanding | Excellent | Outstanding |
Dielectric Strength | Over 2000 volts |
Over 2000 volts
|
Over 2000 volts | Over 2000 volts |
