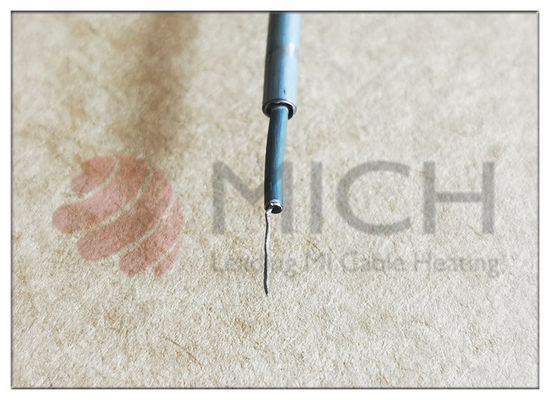

Magnesium Oxide 380V Electric Heating Cable For Heat Related Equipment

Electric Heat Trace Solution For Hotel Water And Heat Related Equipment

Electric Heat Trace Solution for Hotel Water and Heat Related Equipment is a technical heating system to secure the unstopped hot water running pipeline to be maintained at a certain temperature from the faucet end so that for a period of stop using, when the faucet is opened, there is still immediater hot water available in the pipeline.  In sanitary hot water installations, when water stops flowing it starts to cool down to air temperature. And the time to obtain hot water corresponds to the piping length between the boiler and the tap.



The installation of the main pipeline, boiler, heat exchanger and other heating equipment may have been done before planning for some hotels. These equipment, after a few years’ use, may cause various aging problems or local heating imbalance which will seriously affect the comfort of the hotel housing.



In order to meet the requirements of residents and guests for the quality of life, extend the service life of heating equipment and reduce the use cost, from the perspective of low carbon, environmental protection and easy management, electric heat tracing should be installed in the external pipeline.



The advantages of installing the electric heat tracing are as follows: without replacing or disassembling the original equipment, the temperature can be maintained at 50 ~ 55℃ during the water cycle.





Cable Structure





Specification

Heating cable instruction code





MI CU-B 16K320/60/2520/220/E1

No. 1 2 3 4 5 6 7



No.	Instruction
1	Sheath material	CU
2	structure of cable components	shown in table 1
3	cable codes	shown in table 2, 3 and 4
4	length of heating cable	In meter
5	Heating cable power	In Watt
6	heating cable voltage	In Volt
7	heating cable voltage	See table 5





















Cable Code



1 6 K 320

No. 1 2 3 4



Serial NO.	Instruction
1	core number	1 or 2
2	Voltage grade	3=300V, 6=600V
3	conductor materials	C,K
4	cold resistance ×1000	320=0.32Ω/m×1000















Table 1 Structure of Cable Element





Note: Model C, F and G are suitable for being used at temperature under 65℃





Table 4 Heating Cable Specification (300V Double Cores)



Cable Code	Diameter	Nominal resistance at +20℃	Maximum manufacturing length	Unit weight
	mm	Ω/m	m	kg/km
23C3.4	12.0	0.0034	200	708.10
23C4.4	11.3	0.0044	220	629.07
23C5.8	10.4	0.0058	240	537.73
23C8.6	9.00	0.0086	260	392.56
23C11.4	8.40	0.0114	280	343.89
23C13.8	8.00	0.0138	300	314.57
23C17.2	7.60	0.0172	320	286.27
23C23	7.10	0.023	340	252.98
23C34.4	6.60	0.0344	360	221.19
23C49.2	6.20	0.0492	380	197.64
23K160	10.4	0.16	220	508.37
23K240	9.00	0.24	240	392.56
23K320	8.40	0.32	265	343.89
23K384	8.00	0.384	280	314.57
23K480	7.70	0.48	300	291.91
23K640	7.10	0.64	320	252.98
23K960	6.50	0.96	350	216.11

Note: the resistance value of 2-core cable in the above table is the measured value after the ends are twisted (i.e., single-core resistance X2);

For the use of 660V voltage occasions, please contact our company professionals;

Mark of (300)☆ is a recommended production length by MICH
