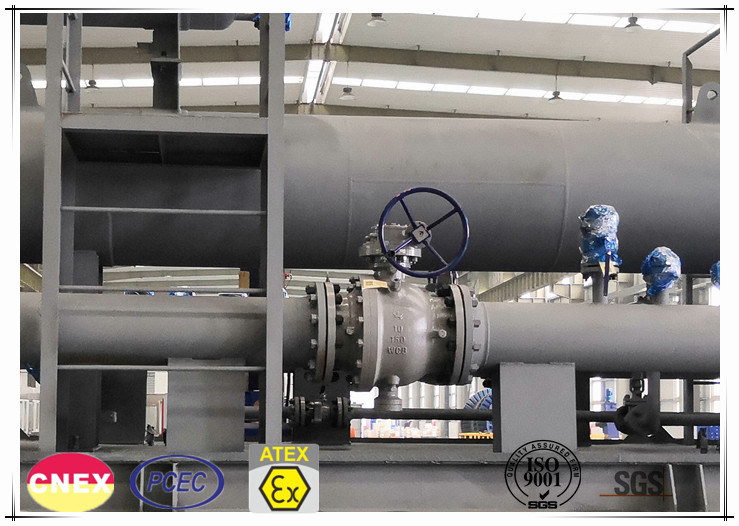

Compressed Air 45KW MI Electric Heating Skid

45KW mineral insulated electric heater for compressed air has been widely used by scientific research and production laboratories of aerospace, weapons industry, chemical industry and universities and as well as used in manufacturing melt-blown cloth (mask cloth, melt-blown non-woven cloth) equipment, especially suitable for automatic control, large flow and high temperature combined system and accessory test. The air electric heater can be used in a wide range: any gas heatable, dry hot produced air without moisture, no conduction, no combustion, no explosion, no chemical corrosion, no pollution, safe and reliable, and fast temperature rising for the heating space(controllable) etc.

Properties:

1. The heat transfer performance of the heating element of this product is good, and the temperature difference between the heating core and the metal sheath is small. At the same time, according to the process requirements, the surface heat load density of the heating element of the MI heating cable can be accurately designed. Under the premise of ensuring the total heating power, the heated medium will not coke. It solves the shortcomings of the traditional tubular electric heaters for long-term carbon deposition, blasting, core breaking and short life. The heating element can with a copper or a stainless steel sheath according to the application temperature and location.

2. The outer shell of the electric heater is welded by seamless steel pipe and flange. The overall structure is tight and firm and the pressure sealing performance is good for safe use. The normal working pressure is 0.6MPa~6.4MPa.

3. The device connection and electrical connection meet the explosion-proof requirements with an explosion-proof grade d IIBT1—T6.

4. Two sets of temperature sensors are installed in electric heater to detect the temperature of the oil and the surface temperature of the heating element. At the same time, the flow locking device can be optionally selected according to the user's needs. When the medium does not flow, the electric heater automatically stops heating.

5. No daily maintenance is required and it is easy to be installed and convenient to be maintained.

6. The product is practical and adaptable. Various non-standard types of electric heaters can be designed according to the different uses and special requirements put forward by users.

Note: When designing an electric heater for using outdoors, the explosion-proof junction box should have a rainproof shed to prevent rainwater from impregnating the gap of the explosion-proof surface through the wet insulation material.

45KW mineral insulated electric heater for compressed air

First, 45KW mineral insulated electric heater for compressed air application field:

45KW mineral insulated electric heater for compressed air has been widely used by scientific research and production laboratories of aerospace, weapons industry, chemical industry and universities and as well as used in manufacturing melt-blown cloth (mask cloth, melt-blown non-woven cloth) equipment, especially suitable for automatic control, large flow and high temperature combined system and accessory test. The air electric heater can be used in a wide range: any gas heatable, dry hot produced air without moisture, no conduction, no combustion, no explosion, no chemical corrosion, no pollution, safe and reliable, and fast temperature rising for the heating space(controllable) etc.

Two, 45KW mineral insulated electric heater for compressed air technical characteristics:

1, can make the air heated to a very high temperature eg 450℃ and even higher, the temperature of the shell is only about 50℃.

2, high efficiency: up to more than 0.98.

3, fast heating and cooling rate, up to 20℃/S, fast and stable adjustment. No temperature lead and lag phenomenon for the controlled air so there will be accurate temperature control on level and time and very suitable for automatic control.

4. Good mechanical properties: because its heating element is a special alloy material, so under the impact of high pressure air flow, it has better mechanical properties and strength than any other heating element, which is more advantageous to the need for a long time continuous heating of the air system and accessories test.

5, when obeying use rules, it is durable with a service life for decades.

6, clean air, small volume.

7, according to the real applications, multiple types of electric air heater can be designed.

MICH is able to provide technical consultation and design for free.
