PASIA INDUSTRIES LTD
————Leading MI Cable Heating
| Place of Origin: | China |
|---|---|
| Brand Name: | MICH |
| Certification: | ISO9001 |
| Model Number: | MIHCE |
| Minimum Order Quantity: | 1 meter |
| Price: | USD0.5-USD5 per meter |
| Packaging Details: | plywood crates |
| Delivery Time: | in one month |
| Supply Ability: | 10 million meters per year |
| Conductor: | Copper | Sheath: | Copper-Nickel |
|---|---|---|---|
| Components: | Connected With Power Cable | Function: | Heating Or Heat Trace |
| Diameter: | 3.2-11.8 Mm | Nominal Resistance At +20℃: | 0.0021-10 |
| Maximum Length: | Up To 375 Meters | Terminal Maximum Voltage: | 600 V |
| High Light: | Alloy Sheath Mineral Insulated Heating Elements,11.8mm Mineral Insulated Heating Elements,11.8mm heating element of heater |
||

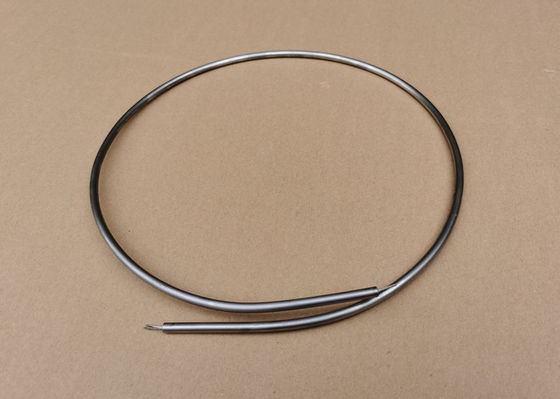

Copper-Nickel Alloy Sheath Mineral Insulated Heating Element for Industries
Mineral Insulated Heating Cables of Cu-Ni alloy sheathed series can meet the requirements of high temperature conditions and long-distance pipelines. The maximum temperature of copper-nickel alloy sheathed heating cable provided by MICH can reach a temperature up to 400℃. Conductor resistance value ranges from 4 Ω/km to 28000 Ω/km. Mineral insulated cable has excellent mechanical strength and corrosion resistance. The heating cable of series resistance provided by MICH can meet the requirements of different powers.
Cable Structure
Application
Cu-Ni Alloy Sheathed Mineral Insulated Heating Cable series are mainly used on petrochemical plant, chemical plant, power plant, natural gas storage, pharmaceutical plant, etc.
Specifications
Heating cable instruction code
MI CN-B 16K239/60/2520/220/E1
NO. 1 2 3 4 5 6 7
| No. | Instruction | |
| 1 | Sheath material | Cu-Ni |
| 2 | structure of cable components | shown in table 1 |
| 3 | cable codes | shown in table 2, 3 and 4 |
| 4 | length of heating cable | In meter |
| 5 | Heating cable power | In Watt |
| 6 | heating cable voltage | In Volt |
| 7 | heating cable voltage | See table 5 |
Cable Code
1 6 K 239
No. 1 2 3 4
| NO. | Instruction | |
| 1 | core number | 1 or 2 |
| 2 | Voltage grade | 3=300V, 6=600V |
| 3 | conductor materials | K,N,C |
| 4 | cold resistance ×1000 | 239=0.239Ω/m×1000 |
Table 1 Structure of Cable Element
Table 2 Heating Cable Specification (600V Single Core)
| Cable Code | Diameter | Nominal resistance at +20℃ | Maximum manufacturing length | Unit weight |
| mm | Ω/m | m | kg/km | |
| 16C2.1 | 6.8 | 0.0021 | 130 | 220.7 |
| 16C3.4 | 5.9 | 0.0034 | 173 | 162.5 |
| 16C5.3 | 5.3 | 0.0053 | 214 | 125.6 |
| 16C8.5 | 4.8 | 0.0085 | 261 | 101.6 |
| 16C13 | 4.3 | 0.013 | 325 | 79.1 |
| 16C21 | 4.0 | 0.021 | 376 | 65.8 |
| 16K40 | 5.8 | 0.04 | 179 | 157.1 |
| 16K50 | 5.4 | 0.05 | 206 | 135.6 |
| 16K60 | 5.2 | 0.06 | 222 | 122.8 |
| 16K80 | 4.8 | 0.08 | 261 | 101.2 |
| 16K100 | 4.7 | 0.1 | 200 | 99.5 |
| 16K120 | 4.5 | 0.12 | 200 | 88.8 |
| 16K160 | 6.5 | 0.16 | 200 | 202.2 |
| 16K200 | 5.9 | 0.2 | 200 | 166.5 |
| 16K250 | 5.3 | 0.25 | 215 | 131.7 |
| 16K400 | 4.7 | 0.4 | 280 | 96.7 |
| 16K500 | 4.5 | 0.5 | 300 | 87.7 |
| 16N630 | 4.3 | 0.63 | 185 | 82.2 |
| 16N1000 | 3.9 | 1.0 | 230 | 62.8 |
| 16N1600 | 3.6 | 1.6 | 270 | 52.4 |
| 16N2500 | 3.4 | 2.5 | 300 | 45.6 |
| 16N2800 | 3.4 | 2.8 | 300 | 45.2 |
| 16N3300 | 3.4 | 3.3 | 300 | 44.7 |
| 16N4000 | 3.2 | 4.0 | 350 | 38.1 |
| 16N5200 | 3.2 | 5.2 | 350 | 37.7 |
| 16N6300 | 3.2 | 6.3 | 350 | 38.4 |
| 16N10000 | 3.2 | 10 | 350 | 38.9 |
Table 3 Heating Cable Specification (600V Double Cores)
| Cable Code | Diameter | Nominal resistance at +20℃ | Maximum manufacturing length | Unit weight |
| mm | Ω/m | m | kg/km | |
| 26K8.4 | 11.8 | 0.0084 | 43 | 632.9 |
| 26K13.4 | 9.8 | 0.0134 | 63 | 431.5 |
| 26K21 | 8.8 | 0.021 | 78 | 339.0 |
| 26K34 | 8.0 | 0.034 | 94 | 273.7 |
| 26K54 | 7.1 | 0.054 | 119 | 212.4 |
| 26K85 | 6.4 | 0.085 | 147 | 170.2 |
| 26K130 | 6.0 | 0.13 | 167 | 147.8 |
| 26K180 | 7.9 | 0.18 | 96 | 271.9 |
| 26K260 | 7.4 | 0.26 | 110 | 234.2 |
| 26K360 | 6.8 | 0.36 | 130 | 195.5 |
| 26K500 | 6.4 | 0.5 | 100 | 171.2 |
| 26K650 | 5.9 | 0.65 | 100 | 144.8 |
| 26K1000 | 5.7 | 1.0 | 100 | 133.3 |
| 26K1300 | 6.2 | 1.3 | 100 | 160.6 |
| 26K2000 | 5.8 | 2.0 | 100 | 139.1 |
| 26K3300 | 5.4 | 3.3 | 100 | 118.8 |
| 26N4600 | 5.8 | 4.6 | 100 | 138.3 |
| 26N8000 | 5.4 | 8.0 | 100 | 118.6 |
| 26N13000 | 5.0 | 13.0 | 100 | 100.8 |
| 26N27000 | 4.8 | 27.0 | 100 | 92.1 |
| 26N40000 | 4.6 | 40.0 | 100 | 84.4 |
| 26N60000 | 4.4 | 60.0 | 100 | 77.1 |
| 26N72000 | 4.2 | 72.0 | 100 | 70.2 |
Table 4 Heating Cable Specification (300V Double Cores)
| Cable Code | Diameter | Nominal resistance at +20℃ | Maximum manufacturing length | Unit weight |
| mm | Ω/m | m | kg/km | |
| 23K210 | 5.2 | 0.21 | 222 | 117.9 |
| 23K300 | 4.8 | 0.3 | 261 | 98.9 |
| 23K400 | 4.8 | 0.4 | 261 | 97.2 |
| 23K480 | 4.8 | 0.48 | 261 | 96.0 |
| 23K650 | 4.6 | 0.65 | 284 | 87.3 |
| 23K1000 | 4.1 | 1.0 | 100 | 68.9 |
| 23K1300 | 3.8 | 1.3 | 100 | 58.9 |
| 23K2000 | 5.0 | 2.0 | 100 | 104.7 |
| 23K2400 | 4.8 | 2.4 | 100 | 95.7 |
| 23K3000 | 4.6 | 3.0 | 100 | 87.3 |
| 23N4600 | 4.8 | 4.6 | 100 | 96.3 |
| 23N7500 | 4.6 | 7.5 | 100 | 86.9 |
| 23N11200 | 4.4 | 11.2 | 100 | 78.7 |
| 23N14000 | 4.2 | 14.0 | 100 | 71.6 |
| 23N18000 | 3.6 | 18.0 | 100 | 52.6 |
| 23N26000 | 3.6 | 26.0 | 100 | 52.2 |
| 23N40000 | 3.4 | 40.0 | 100 | 46.4 |
| 23N50000 | 4.0 | 50.0 | 100 | 63.8 |
| 23N60000 | 3.6 | 60.0 | 100 | 51.7 |
| 23N72000 | 3.4 | 72.0 | 100 | 46.1 |
Note: the resistance value of 2-core cable in the above table is the measured value after the end is twisted (i.e., single-core resistance X2);
For the use of 660V voltage occasions, please contact our company professionals.
Table 5 terminal specifications
| Model: A, D, E | Model: B | |||
|
Maximum Voltage (V) |
Maximum Current (A) | Terminal Specification | Maximum Current (A) | Terminal Specification |
| 600 | 15 | E2 | 20 | E1 |
| 600 | 20 | E2 | 25 | E2 |
| 600 | 30 | E3 | 40 | E2 |
| 600 | 50 | E3 | 70 | E2 |
| 600 | 70 | E3 | 100 | E3 |
Note 1: E1 means 1/2 "NPT;E2 means 3/4 "NPT;E3 represents 1 "NPT (taper thread);Additional connection thread requirements are available.
Note 2: the length of cold end cable with standard configuration is 2 meters. If you increase or decrease of length required, please contact our professional personnel.
Corresponding reference table between the output power and sheath temperature
Anticorrosive specification
| Material | ||
| Sulfate | Not recommend | |
| Hydrochloric acid | Data checking required | |
| Hydrofluoric acid | Data checking required | |
| Phosphate | Data checking required | |
| Carbonate | Data checking required | |
| Organic acid | Data checking required | |
| Alkali metal | Data checking required | |
| Sea water | Excellent | |
| Chloride | Excellent |
Explosion-proof instructions
MICN series heating cable with explosion-proof terminal, can be used in potential explosive environment. Authenticated by the Chinese CQST, in accordance with Chinese GB3836 explosion-proof electrical standards, they can be applicable to Ⅱ A, Ⅱ B, Ⅱ C (C1D2) level of explosion-proof electrical equipment.
