825 Mineral Insulated Heating Cable , 600V Single Conductor Cable

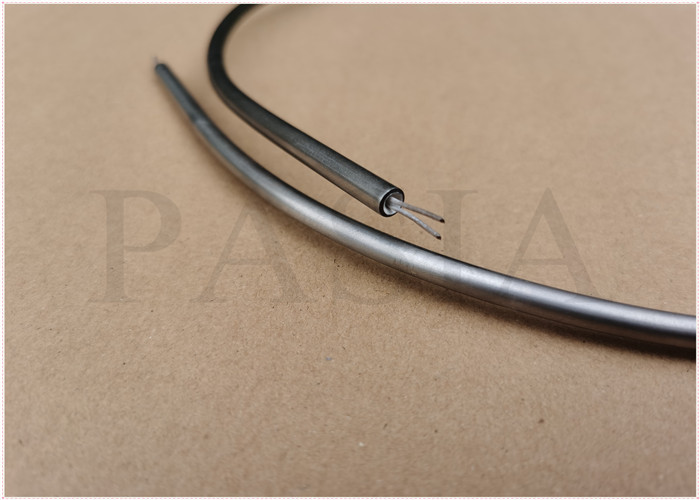

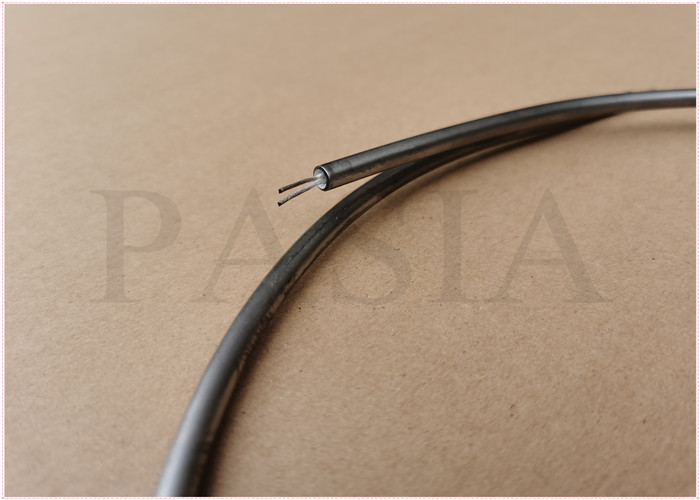

Single Core Conductor High Strength 825 Alloy Sheath Mineral Insulated Heating Cable of 600V Voltage is a special MI heating cable with the cable out diameter up to 6.8 mm and nominal resistance at +20℃ up to 10 Ω/. For the heat trace distance can be continuously without connection up to 376 meters which can be manufactured in workshop for being delivered to on site.  The unit weight can be up to 220 kg/meter for the heaviest stocked product. If user faces special working conditions, customized products and specifications are available. High temperature conditions and high heating power can be achieved (up to 269W/m). 825 alloy sheathed series mineral insulated heating cable possesses excellent mechanical strength and advanced corrosion resistance. The heating cable of series resistance provided by MICH can meet the requirements of different power grade.



825 Alloy Sheathed Heating Cable Specification (600V Single Core)



Cable Code	Diameter	Nominal resistance at +20℃	Maximum manufacturing length	Unit weight
	mm	Ω/m	m	kg/km
16C2.1	6.8	0.0021	130	220.7
16C3.4	5.9	0.0034	173	162.5
16C5.3	5.3	0.0053	214	125.6
16C8.5	4.8	0.0085	261	101.6
16C13	4.3	0.013	325	79.1
16C21	4.0	0.021	376	65.8
16K40	5.8	0.04	179	157.1
16K50	5.4	0.05	206	135.6
16K60	5.2	0.06	222	122.8
16K80	4.8	0.08	261	101.2
16K100	4.7	0.1	200	99.5
16K120	4.5	0.12	200	88.8
16K160	6.5	0.16	200	202.2
16K200	5.9	0.2	200	166.5
16K250	5.3	0.25	215	131.7
16K400	4.7	0.4	280	96.7
16K500	4.5	0.5	300	87.7
16N630	4.3	0.63	185	82.2
16N1000	3.9	1.0	230	62.8
16N1600	3.6	1.6	270	52.4
16N2500	3.4	2.5	300	45.6
16N2800	3.4	2.8	300	45.2
16N3300	3.4	3.3	300	44.7
16N4000	3.2	4.0	350	38.1
16N5200	3.2	5.2	350	37.7
16N6300	3.2	6.3	350	38.4
16N10000	3.2	10	350	38.9







































































Application



High temperature pipeline heat tracing	Anti-condensation and viscosity decreasing for process media
Tank/vessel heating	Metal manufacturing industry -- low melting point alloy melting
Extruder shell heating	Recycling of nuclear fuel waste
All kinds of industrial electric heaters



Specification

Heating cable instruction code



MI AL-B 16K6560/60/2520/220/E1

No. 1 2 3 4 5 6 7

No.	Instruction
1	Sheath material	825 alloy
2	structure of cable components	shown in table 1
3	cable codes	shown in table 2, 3 and 4
4	length of heating cable	In meter
5	Heating cable power	In Watt
6	heating cable voltage	In Volt
7	heating cable voltage	See table 5





















Cable Code



1 6 K 6560

No. 1 2 3 4



Serial NO.	Instruction
1	core number	1 or 2
2	Voltage grade	3=300V, 6=600V
3	conductor materials	K,N,C
4	cold resistance ×1000	6560=6.56Ω/m×1000















Table 1 Structure of Cable Element



Table 5 terminal specifications



	Model: A, D, E		Model: B
Maximum Voltage(V)	Maximum Current (A)	Terminal Specification	Maximum Current (A)	Terminal Specification
600	15	E2	20	E1
600	20	E2	25	E2
600	30	E3	40	E2
600	50	E3	70	E2
600	70	E3	100	E3

Note 1: E1 means 1/2 "NPT;E2 means 3/4 "NPT;E3 represents 1 "NPT (taper thread);Additional connection thread requirements are available.

Note 2: the length of cold end cable with standard configuration is 2 meters. If you increase or decrease of length required, please contact our professional personnel.



Cable Structure



Corresponding reference table between the output power and sheath temperature

Anticorrosive specification



Material
Sulfate	good
Hydrochloric acid	good
Hydrofluoric acid	good
Phosphate	good
Carbonate	good
Organic acid	good
Alkali metal	good
Sea water	good
Chloride	good



Explosion-proof instructions

MIAL series heating cable with explosion-proof terminal, can be used in potential explosive environment. Authenticated by the Chinese CQST, in accordance with Chinese GB3836 explosion-proof electrical standards, they can be applicable to Ⅱ A, Ⅱ B, Ⅱ C (C1D2) level of explosion-proof electrical equipment.
